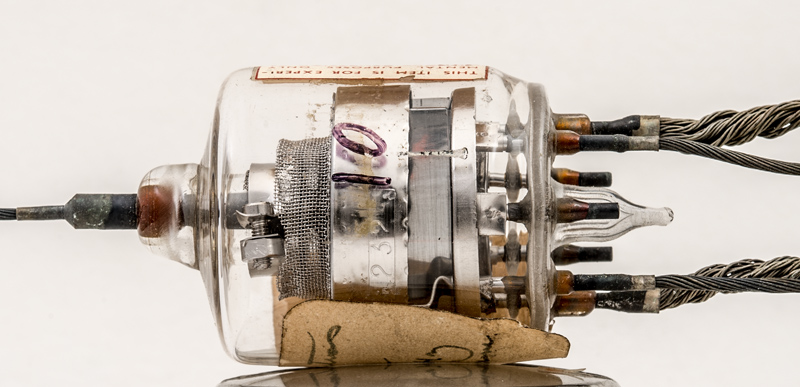

This is an experimental Thyratron and is described as the final iteration of the design and aimed at use in missiles.

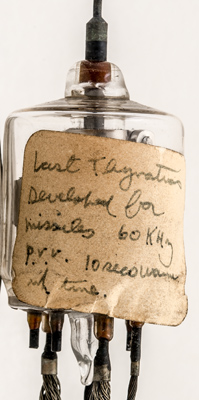

The paper label that reads: Last Thyratron developed for missiles 60 kHz pulse repetition rate and 10 seconds warm-up time.

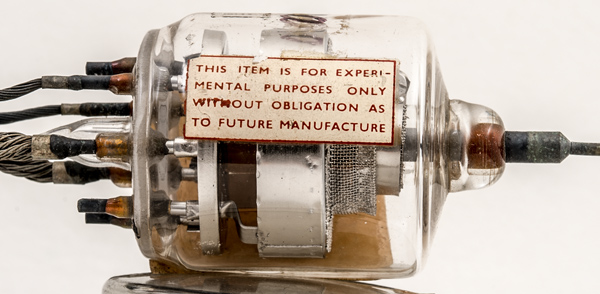

This label says that the device is experimental but does not identify the maker.

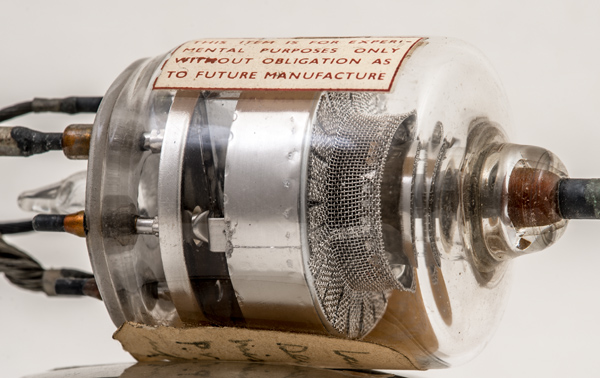

The anode end and shielding.

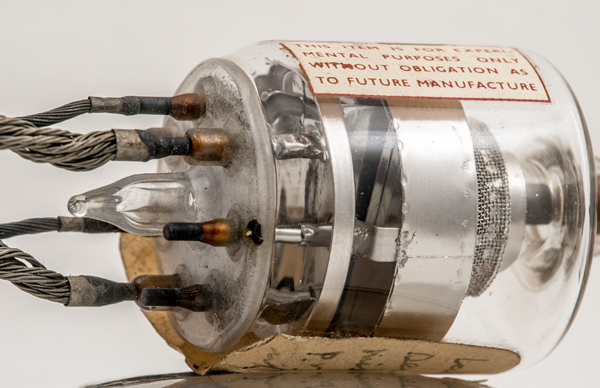

The base end with four heavy duty stranded wire leads.
The base is sintered for extra strength.

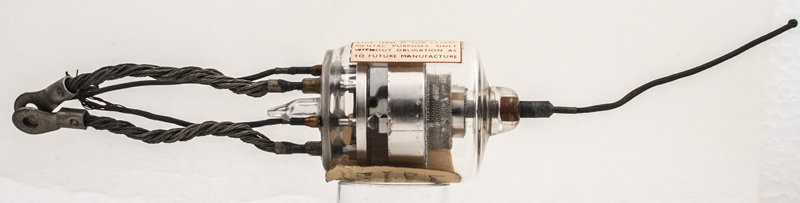

The complete device with fixings on the ends of two leads.The wide glass tube envelope is 38 mm in diameter, and excluding the base leads is 62 mm tall.Reference: Observation. |
