PCF86

Sensibly equivalent to:
8HG8
See also:
Valves and their Habits - Frame Grid Valves - Frame-grid valves for TV

Extras ▼

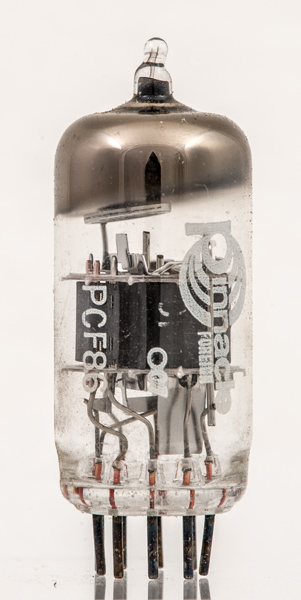

The Mullard PCF86 is a miniature VHF TV frequency changer. It has been designed for the triode oscillator to supply 3.2 Volts peak to peak to the pentode mixer section.
This exhibit is an import and is marked as Foreign.

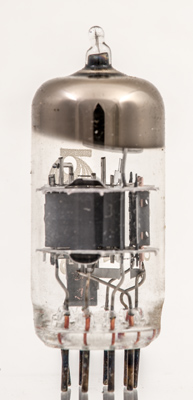

The support on the left is the g2 lead.

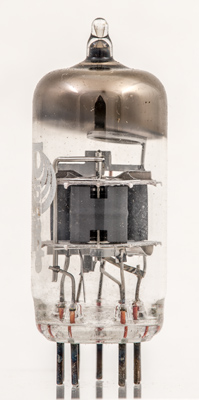

The oscillator triode is on the right. Note the screening under the lower mica.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 48 mm tall.
References: Data-sheet, 3002 & 1040. Type PCF86 was first introduced in 1960. See also 1960 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
k,g3,s
g1
k,g3,s
h
h
g1(t)
a(t)
a
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
8.0
0.3
190
140
-1.5
8.5
2.7
0.35M
4.5



Absolute Maximum Operating Conditions
Triode
Va
mAa
120
6.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated June 21, 2024.
