PY82

Sensibly equivalent^¶ to:

19Y3 U192

See also:

Valves and their Habits

Extras ▼

Philips The Hampshire Collection Other PY82 exhibits

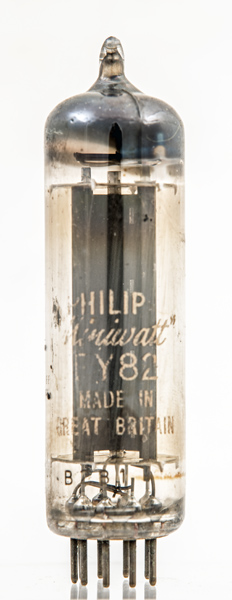

The PY82 is an efficiency diode for use in domestic television receivers. The valve can also be used for HT rectification. This is British Made at one of the Mullard factories.

The minimum effective series resistance that must be in circuit to protect the cathode from surges is 30 Ohms. The maximum reservoir capacitor is 60 μF.

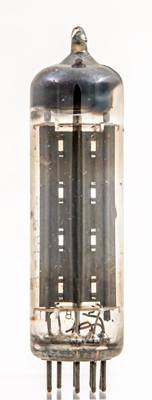

The stitched anode has four flanges set at right angles.

The thin glass tube envelope is 20 mm in diameter, and excluding the B9A base pins is 69 mm tall.

References: Data-sheet, ³⁰⁰² & ¹⁰⁴⁰. Type PY82 was first introduced in 1951. See also 1951 adverts.

Pin Connections

B9A	1	2	3	4	5	6	7	8	9
	ic	ic	k	h	h	ic	ic	ic	a

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	mAa
	19.0	0.3	200	180

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated June 26, 2023.
