EY86

Sensibly equivalent to:
6S2 CV2966
See also:
Valves and their Habits

Extras ▼



The EY86 is a television EHT rectifier that is rated in terms of peak inverse volts (PIV) and that is quoted at 22,000 Volts.
Made in England and Brimar was part of the British Valve Association (BVA).

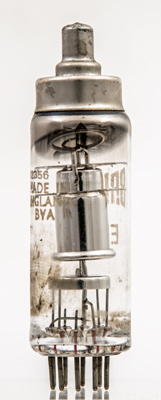

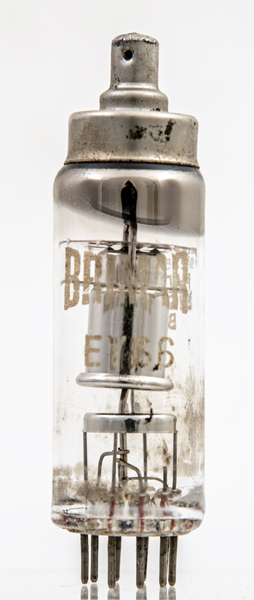

The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 66 mm tall.
References: Data-sheet & 1040. Type EY86 was first introduced in 1956. See also 1956 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
tc
h,k,s
h
nc
h,k,s
h
h,k,s
nc
h
h,k,s
a



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
mAa
6.3
0.09
0.8
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated June 26, 2023.
