W147

Sensibly equivalent to:
EF39 OM6

Extras ▼



The M-OV W147 is a variable-mu RF pentode, with sliding screen characteristics, for use as a controlled RF or IF amplifier for use up to 30 MHz.
The Mullard equivalent is the EF39 and the Cossor OM6 is similarly equivalent.

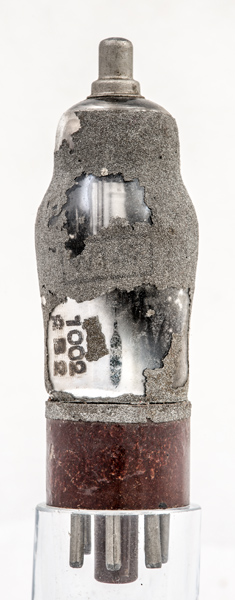

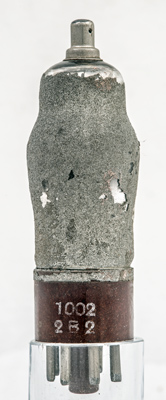

The code on the base cap matches that seen under the metallic paint.
The classic envelope is 30 mm in diameter and excluding the IO base pins it is 85 mm long.
Reference: Data-sheet.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
h
a
g2
g3
nc
h
k
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.2
250
250
-2.5
6
1.7
1.5M
2.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
