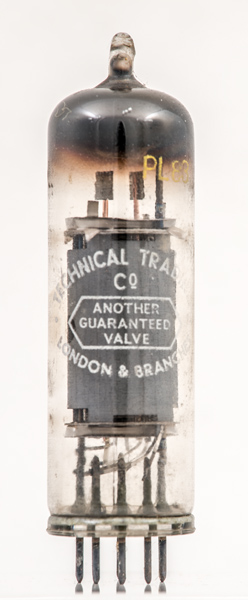

Technical Trading were a re-seller of valves and equipment. This exhibit has been re-branded but looks much like a Philips made PL83. The groove in the join between the hard glass base and the soft glass envelope is typical of Philips machinery.
The PL83 was designed as a sensitive video amplifier valve for television receivers.

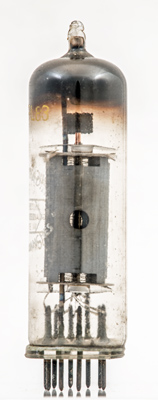

The discolouration inside the glass speaks of a hard service life.

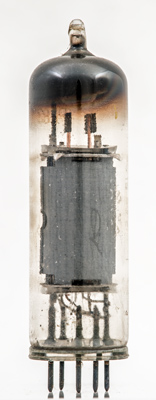

Each side of the control grid support rods is mounted a small radiating fin to cool the grid.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 69 mm tall.
References: Data-sheet & 1040. Type PL83 was first introduced in 1951. See also 1951 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
g2
g1
k
h
h
g3
a
s
nc



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
15
0.3
170
170
-2.3
36.0
5.0
0.1M
10.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
