CV347

Sensibly equivalent to:
EBC21

Extras ▼

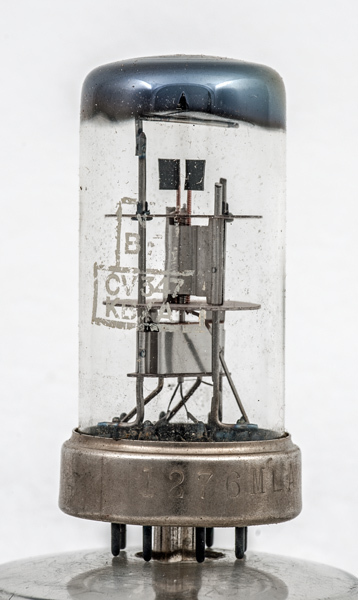

The CV347 is a double diode triode with the CV specification based on the Mullard EBC21.
Traditionally the double diode triode sat at the end of the IF amplifier in a superhet receiver. One diode demodulated the AM signal which was then amplified by the triode. The second diode was the AGC rectifier and produced a negative voltage proportional to the amplitude of the IF signal. This negative voltage was then applied to the control grid of the controlled vari-μ valves and reduced their gain as the negative voltage increased. The receiver was thus sensitive for weak signals and the sensitivity was progressively reduced for stronger signals thus preventing overload and distortion.

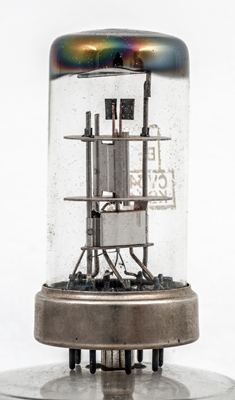

The triode at the top is set at right angles to the screen that houses the two rods that form the diode anodes.

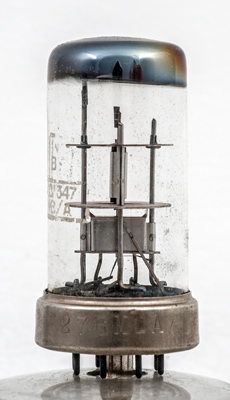

The triode control grid is supplied with heat radiating fins.

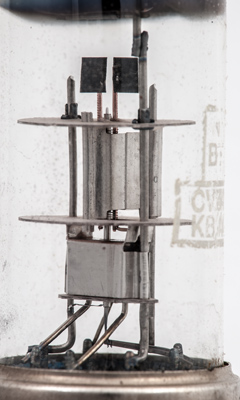

The grid winding on the copper rods and the central cylindrical cathode.
The wide glass tube envelope is  mm in diameter, and excluding the base pins is  mm tall.
Reference: Datasheet.



Pin Connections
B8B
1
2
3
4
5
6
7
8
h
a
g1
k
a(d2)
a(d1)
k
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
6.3
0.2
300
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 03, 2018.
shape:wide.glass.tube type:double.diode.triode age:1940.1950 base:b8b heater:6.3v pins:8 pin:1.h pin:2.a pin:3.g1 pin:4.k pin:5.a(d2) pin:6.a(d1) pin:7.k pin:8.h
