TH233



Extras ▼



The TH233 is a triode heptode frequency changer for 200 mA series heater chains. The TH2321 is the same basic design but with higher internal capacitancies and the older B7 base.

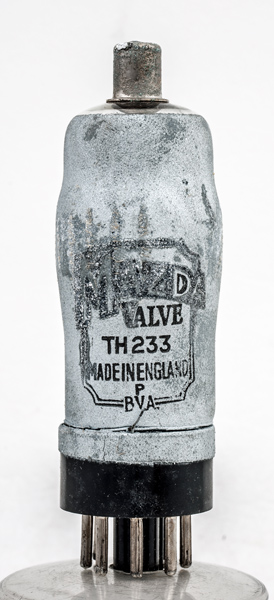

This exhibit is unused and came in the original box surrounded by corrugated card and wrapped in protective paper.

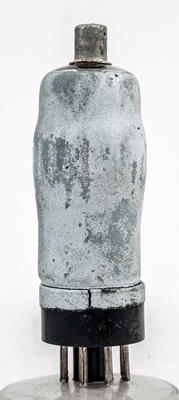

The reverse is plain zinc paint.
The classic envelope is 32 mm in diameter, and excluding the MO base pins is 89 mm tall.
References: Datasheet, 1040 & 1043. Type TH233 was first introduced in 1939.



Pin Connections
MO
1
2
3
4
5
6
7
8
tc
h
k
a
a(t)
g1(t),g3
m
g2,g4
h
g1



Absolute Maximum Operating Conditions
Heptode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
23
0.2
150
100
-3.0
3.0
6.0
1M
0.65
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 02, 2018.
shape:classic construction:pinch type:triode.heptode age:1930.1940 base:mo heater:200ma pins:8 pin:1.h pin:2.k pin:3.a pin:4.a(t) pin:5.g1(t).g3 pin:6.m pin:7.g2.g4 pin:8.h pin:tc.g1
