CV3526

Sensibly equivalent to:
6BN5 EL85

Extras ▼



The CV3526 is the UK Government procurement designation for the EL85. The EL85 itself appears to be the little brother of the EL84 pentode. It is specified for single ended audio applications with a load resistance 9000 Ohms. This could be used in radio or television receivers it is also an RF amplifier up to 100 MHz..

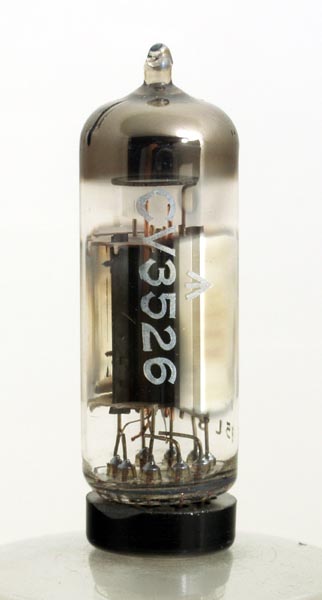

The thin glass tube envelope is 20 mm in diameter and excluding the B9A base pins the valve stands 58 mm high.
References: Data-sheet & 1040. Type CV3526 was first introduced in 1954. See also 1954 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
g1
g1
k
h
h
g3
a
g3
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
6.3
0.2
225
225
-10.8
26
41
90k
3.2
2.8W
12%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 13, 2013.
