10CV1180243



Extras ▼

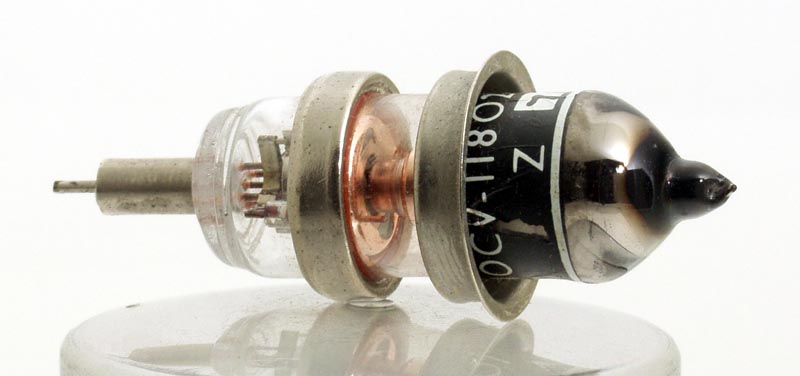

The exhibit is a small disc seal triode very similar to the DET22. The heater and cathode are opposite the main envelope. The grid has a circular connection to the flat internal metal mesh. The anode is copper and has a flat surface facing the grid and positioned very close to it.
The planar envelope is 15 mm in diameter and, overall is 60 mm tall.
Reference: Observation.



Updated April 30, 2013.
shape:planar construction:disc.seal.(glass) type:triode age:1940.1950 base: pin:
