EY86

Sensibly equivalent to:
6S2 CV2966
See also:
Valves and their Habits

Extras ▼

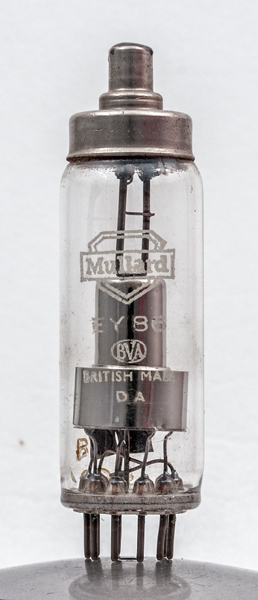

This British made Mullard EY86 is a television EHT rectifier that is rated in terms of peak inverse volts (PIV) and that is quoted at 22,000 Volts.

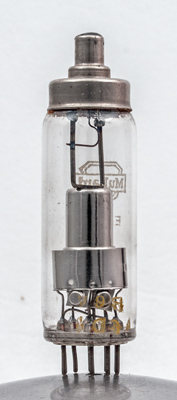

This is an early EY86 and this is denoted by the un-gettered manufacture,
See EY86 for full details and a sample with gettering.

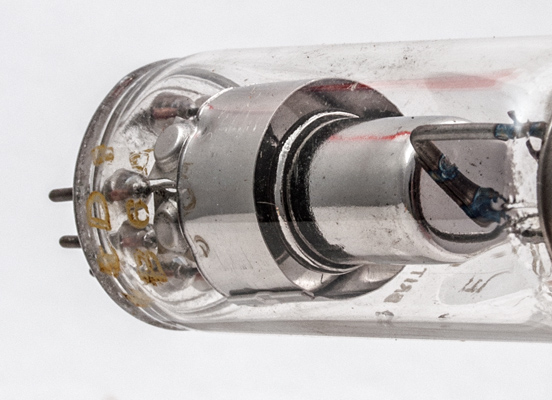

The anode sits within the cylindrical screen.
The screen and the anode. The cathode tube will be placed centrally within the anode.
The thin glass tube envelope is 20 mm in diameter and excluding the B9A base pins the valve is 66 mm long.
References: Data-sheet & 1040. Type EY86 was first introduced in 1956. See also 1956 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
tc
h,k,s
h
nc
h,k,s
h
h,k,s
nc
h
h,k,s
a



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
mAa
6.3
0.09
0.8
Thanks to Frank Philipse for supplying the above PDF datasheet.
