GTR150M/S

Sensibly equivalent to:
150A2 CV287 QS95/10 V987B
See also:
CV287 Priming Anode

Extras ▼

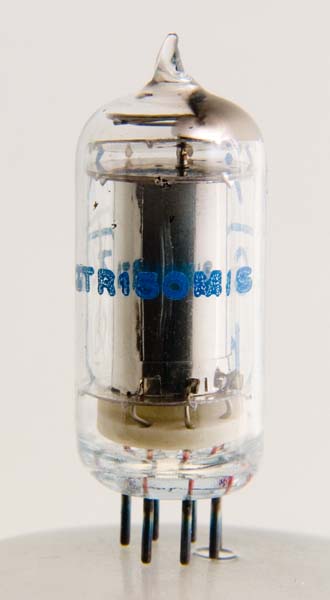

The GTR150M/S is a miniature voltage stabiliser.
The striking Voltage is 170 and for burning currents of 2 - 10 mA the regulation is believed to be 5 Volts. The electrode at pin 4 is the priming anode and it should draw no more than 500 μA.
The thin glass tube envelope is 17 mm in diameter and, excluding the B7G base pins, is 45 mm tall.
References: Data-sheet.



Pin Connections
B7G
1
2
3
4
5
6
7
k
k
k
pa
a
a
a



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
150
2-10
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December02, 2019.
