EC92

Sensibly equivalent to:
6AB4

Extras ▼

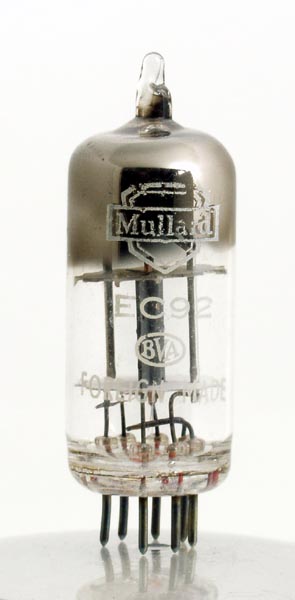

The EC92 is a single triode designed for use as a mixer, amplifier or oscillator in VHF television receivers. The heater is controlled in both voltage and current requirements so that it can be used for parallel or series heater chains.
It appears to be a miniature replacement for the EC52 low power VHF oscillator valve.

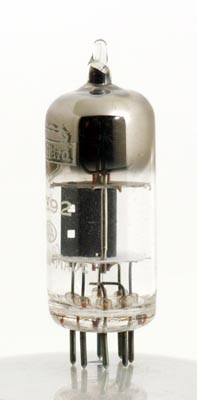

The side view shows the simple folded anode with the round cavity for the other electrodes at one end. The anode is treated to improve its efficiency at radiating away the heat generated.
The thin glass tube envelope is 17 mm in diameter and, excluding the B7G base pins, is 46 mm tall.
References: Data-sheet & 1040. Type EC92 was first introduced in 1952. See also 1952 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
a
s
f
f
nc
g1
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.15
250
-2.0
10.0
11,000
5.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 08, 2022.
