PCF805

Sensibly equivalent to:
30C18 7GV7
See also:
Valves and their Habits - Mazda TV Valves advert

Extras ▼

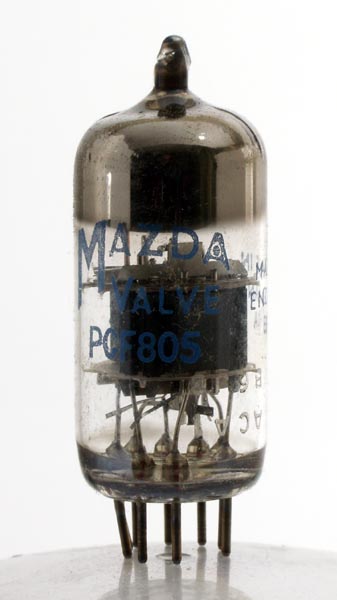

The PCF805 is identical to the 30C18. It is a purpose designed oscillator and mixer for frequency changer use in VHF television receivers. Although there are two separate electrode systems in the envelope the cathodes are joined together. To lower cathode lead inductance two pins are used for the cathode connections.
The thin glass tube envelope is 20 mm in diameter, and excluding the B9A base pins, is 47 mm tall.
Reference: 1040. Type PCF805 was first introduced in 1962. See also 1962 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(t)
g2
a
h
h
k(t),k,g3,s
g1
k(t),k,g3,s
g1(t)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
7.4
0.3
155
135
-3.0
7.8
2.4
0.4M
4.7



Absolute Maximum Operating Conditions
Triode
Va
mAa
77
7.8
