PCF801

Sensibly equivalent to:
8GJ7
See also:
Valves and their Habits - PCF801 - Valves for Dual Standard TVs Advert - PC900 & PCF801 Advert - PCF801 & AW59-91 Advert - New TV Valves and Circuits

Extras ▼

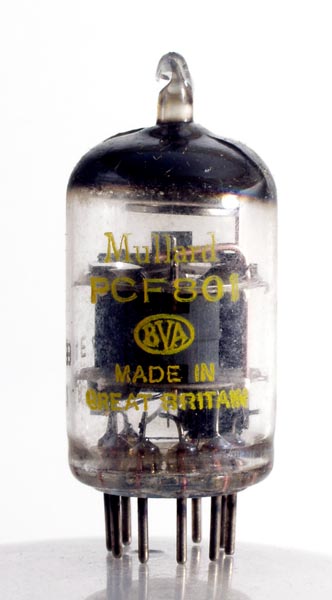

The PCF801 is a television mixer oscillator. Triode pentode combinations worked better at high frequencies than hexode mixers.
Mullard describe the PCF801 as: a triode frame-grid variable-μ pentode.
The thin glass tube envelope is 20 mm in diameter, and excluding the B9A base pins, is 41 mm tall.
Reference: Data-sheet. Type PCF801 was first introduced in 1963. See also 1963 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
k,g3,s
g1(t)
k,g3,s
h
h
a
g2
a(t)
g1(t)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
8.5
0.3
175
120
-1.4
10
3.0
0.35M
5.0



Absolute Maximum Operating Conditions
Triode
Va
mAa
60
12
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 03, 2019.
