6CV7

Sensibly equivalent to:
62DDT 6LD3 CV3882 DH150 DH718 EBC41

Extras ▼

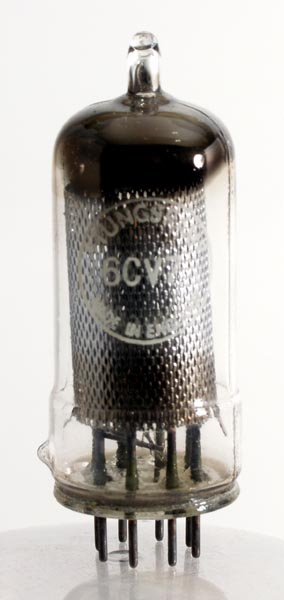

The 6CV7 is a medium impedance screened double diode triode. It would be used in signal and AGC detection in receivers. The triode would then act as the first audio amplifier stage. Tungsram valves were at the time this valve was made regarded as low cost imports. The feeling fostered by the BVA was that original UK makes offered superior quality and length of service. In some cases this may have been true but the Hungarian Tungsram company made fine valves.
The thin glass tube envelope is 20 mm in diameter and, excluding the B8A base pins, is 53 mm tall.
References: Data-sheet & 1040.



Pin Connections
B8A
1
2
3
4
5
6
7
8
h
a
g1
s
a(d2)
a(d1)
k
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.23
250
-3
1.0
58,000
1.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
