M8097

Sensibly equivalent^¶ to:

CV4059

See also:

Mullard Special Quality Valves - General Data

Extras ▼

Mullard The Hampshire Collection

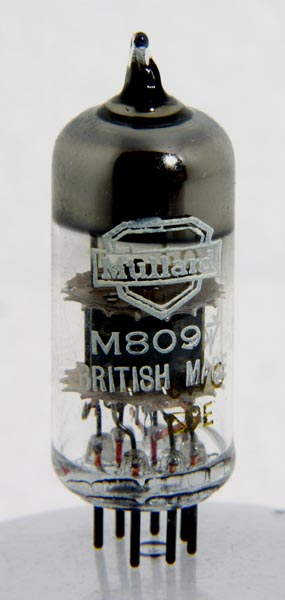

The M8097 is a special quality version of the commercial EAC91 and is a miniature diode triode. The diode is a separate valve to the triode and can be operated in a separate circuit.

Mullard describe the EAC91 as intended for service as an oscillator triode for use as a frequency changer (mixer). The sample circuit given by Mullard uses the diode as the non linear mixer element and rates the design as suitable for UHF use up to 300 MHz. The special quality versions were designed for long life and vibration resistance.

The thin glass tube envelope is 18 mm in diameter and excluding the B7G base pins it is 46 mm long.

References: Data-sheet & ¹⁰⁴⁰. Type M8097 was first introduced in 1963. See also 1963 adverts.

Pin Connections

B7G	1	2	3	4	5	6	7
	a(d)	k(d)	h	h	k	g1	a

Absolute Maximum Operating Conditions^¶

Triode	Vh	Ah	Va	Vg	mAa	ra	gm
	6.3	0.3	200	-3.8	7.5	12.8k	2.8

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated March 29, 2013.
