M8248

Sensibly equivalent^¶ to:

CV5311

See also:

Mullard Special Quality Valves - General Data

Extras ▼

Mullard The Hampshire Collection

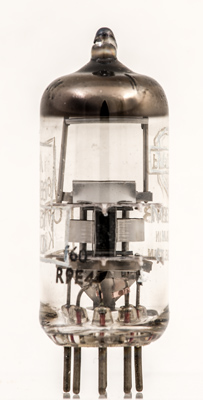

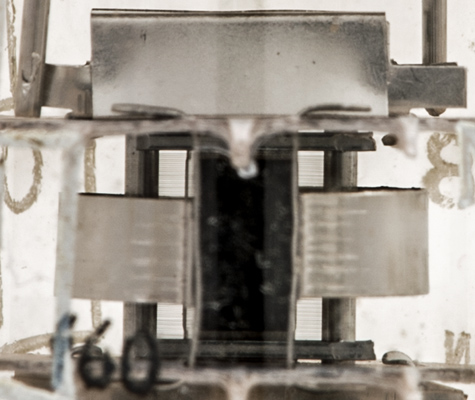

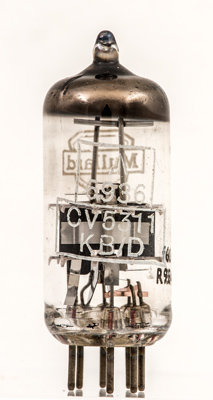

The M8248 is a special quality UHF triode for use as a grounded grid amplifier. The construction is interesting and difficult to determine. It appears to be highly screened.

The thin glass tube envelope is 17 mm in diameter, and excluding the B7G base pins, is 42 mm tall.

Reference: Data-sheet. Type M8248 was first introduced in 1962. See also 1962 adverts.

Pin Connections

B7G	1	2	3	4	5	6	7
	g1	k	h	h	g1	g1	a

Absolute Maximum Operating Conditions^¶

Triode	Vh	Ah	Va	Vg	mAa	ra	gm
	6.3	0.4	150	-1.35	13.5	3,700	13.5

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated March 29, 2013.
