6BA5



Extras ▼



The 6BA5 is a sub miniature general purpose voltage amplifier pentode with flying leads for direct soldering into circuit. The anode dissipation is 700mW.

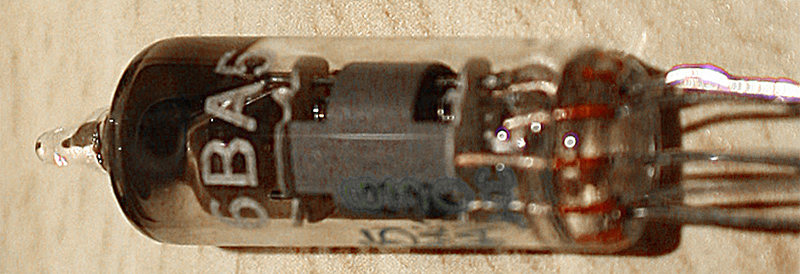

The Sylvania lettering in green.
Thanks to Torben Larsen for spotting the error in the equivalents list and sending these images.
The thin glass tube envelope is 10 mm in diameter, and excluding the B8B base wires is 34 mm tall.
Reference: Datasheet. Type 6BA5 was first introduced in 1948.



Pin Connections
B8D & B8D/F
1
2
3
4
5
6
7
8
g1
-
h
-
a
h
g2
k,g3



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.15
150
140
-
5.5
2.0
0.175M
2.15
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated September 03, 2017.
shape:thin.glass.tube construction:all.glass type:pentode age:1940.1950 base:b8d heater:6.3v pin:1.g1 pin:2.- pin:3.h pin:4.- pin:5.a pin:6.h pin:7.g2 pin:8.k.g3
