10F9

Sensibly equivalent to:
W118 W145
See also:
Olympia Show 1947 - New Receiving Valves - Mazda 10C1, 10F9, 10LD11, 10P13 & U404 Advert - Mazda 10F9, 10C1, 10LD11, 10P13, 10P14 & U404 Valves Advert

Extras ▼



The 10F9 is a screened variable μ pentode for AGC controlled IF amplification in superhet receivers.

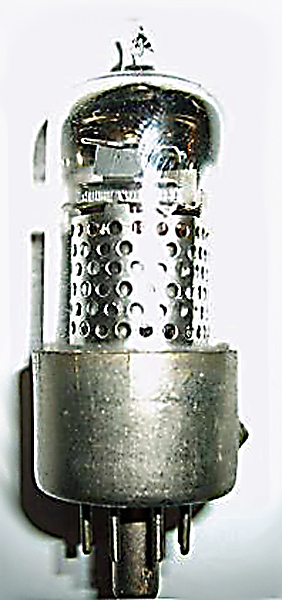

Thanks to Jonathan Marsh for the image.
The thin glass tube envelope is 20 mm in diameter, and excluding the B8A base pins is 51 mm tall.
Reference: 1040. Type 10F9 was first introduced in 1947. See also 1947 adverts.



Pin Connections
B8A
1
2
3
4
5
6
7
8
h
a
s
g3
g2
g1
k
h



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
13.0
0.1
175
100
-2.5
7.0
2.0
1M
2.3
Updated December18, 2020.
