CV1912

Sensibly equivalent to:
6F6
See also:
Metal Striptease

Extras ▼



Type CV1912 is a general-purpose audio output pentode intended for domestic and car radios. The commercial equivalent is the 6F6.
The design dates from the mid-1930s and the 6F6 was a well-established classic long before WWII. Its output is roughly similar to that of the well-known type 6V6 but it was considerably more sensitive and could be driven directly from the detector output, thus saving one stage of audio amplification. This was convenient particularly in compact car radios but the price of the extra gain was paid in a larger cathode and more heater power than the 6V6. As a result it tended to run hot and, in car radios, a de-rating was normally recommended.
The operating values given are for single ended use with an anode load of 7,000 Ohms.
If a pair are used as an audio amplifier in push pull class A, 10.5 Watts are possible with 3% distortion.

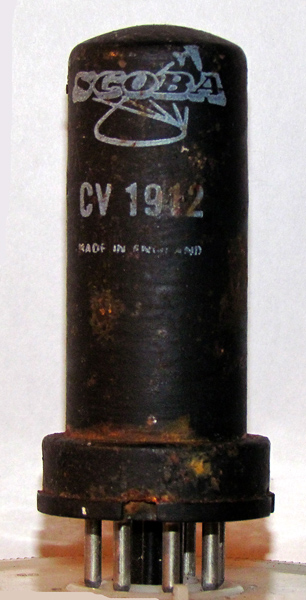

Thanks to Bob Hopkins for sending the image.
The thin metal tube envelope is 25 mm in diameter and, excluding the IO base pins, is 66 mm tall.
References: Data-sheet & 1040.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
g2
g1
nc
h
k



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
6.3
0.7
285
285
-20
38
7
78k
2.55
4.5W
9%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 08, 2022.
