6H6

Sensibly equivalent to:
CV1930 D63 VT-90
See also:
Metal Striptease, The 6H6 Diode Family

Extras ▼



The 6H6 double diode was used for video demodulation and clamping circuits among many other uses especially in the 1940s.

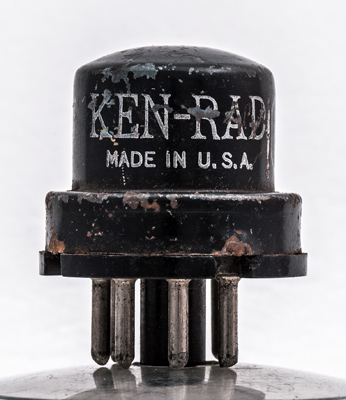

Made in USA by Ken-Rad.

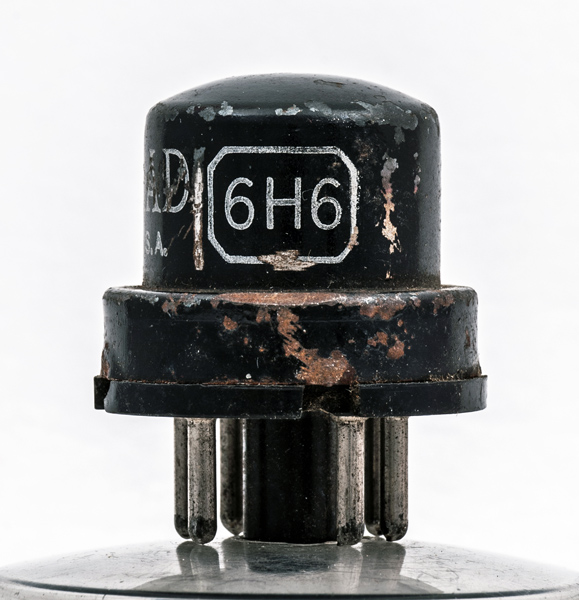

The thin metal tube envelope is 25 mm in diameter and, excluding the IO base pins, is 29 mm tall.
References: Datasheet & 1040. Type 6H6 was first introduced in 1935.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a(2)
k(2)
a(1)
-
h
k(1)



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.3
150
8
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 14, 2017.
shape:thin.metal.tube construction:glass.disc type:double.diode age:1940.1950 base:io heater:6.3v pins:8 pin:1.m pin:2.h pin:3.a(2) pin:4.k(2) pin:5.a(1) pin:6.- pin:7.h pin:8.k(1)
