6080

Sensibly equivalent to:
11D12 CV2984 CV5008 ECC230
See also:
Series Pass Valves

Extras ▼

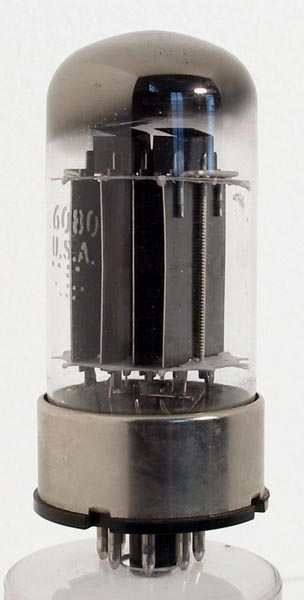

The 6080 double triode features anodes split into two flat ended 'U' shaped channels either side of the flat cathode/grid assemblies.
For full text See 6080.
The wide glass tube envelope is 36 mm in diameter and, excluding the IO base pins, is 84 mm tall.
References: Data-sheet, private communication, 3002 & 1040. Type 6080 was first introduced in 1951.



Pin Connections
IO
1
2
3
4
5
6
7
8
g1(1)
a(1)
k(1)
g1(2)
a(2)
k(2)
h
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
mAa
Pdiss
ra
gm
μ
6.3
2.5
135
125
13W
285
7.0
2-2.3
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 03, 2014.
