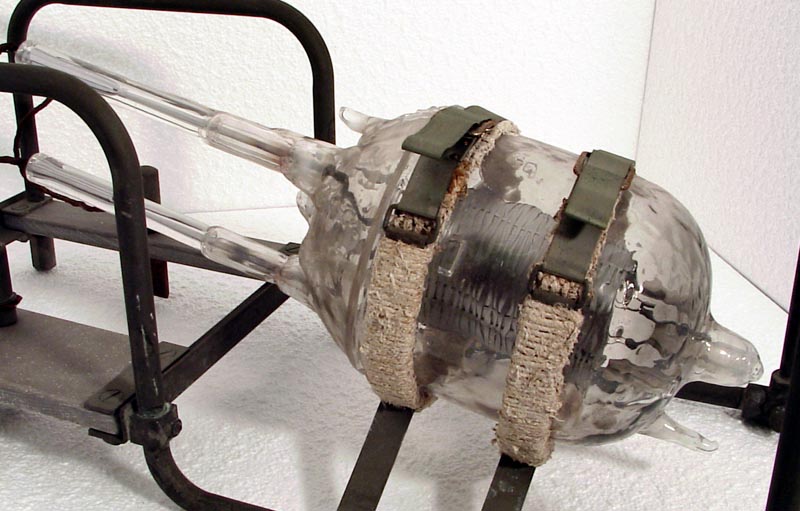

This power rectifier is housed in a silica envelope for higher operating temperatures. The filament is formed into twin inverted V's giving four emitting wires within the enclosing woven anode.

The silica envelope is 90 mm in diameter and, excluding the base pins, is 288 mm tall.
