CV5326

Sensibly equivalent to:
CV2163 E2908

Extras ▼



The CV5326 is a disc seal triode. The prototype was the CV2163 also known as the E2908.

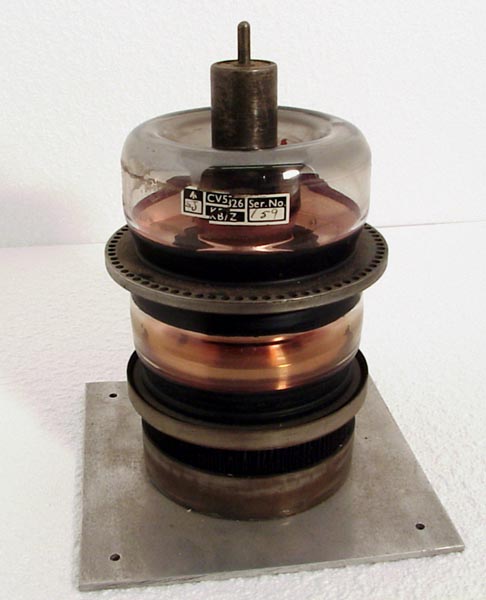

The coaxial filament connections can be seen at the top of the picture. The grid ring is in the middle and the anode at the bottom. Obscured by shadow is the fan fold tape cooling fins within the lower anode ring.
The grid ring is 106 mm in diameter and, excluding the base pins, is 190 mm tall.
Reference: Data-sheet. Type CV5326 was first introduced in 1960. See also 1960 adverts.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
16.0
7.3
13,000
Thanks to Frank Philipse for supplying the above PDF datasheet.
