6032



Extras ▼

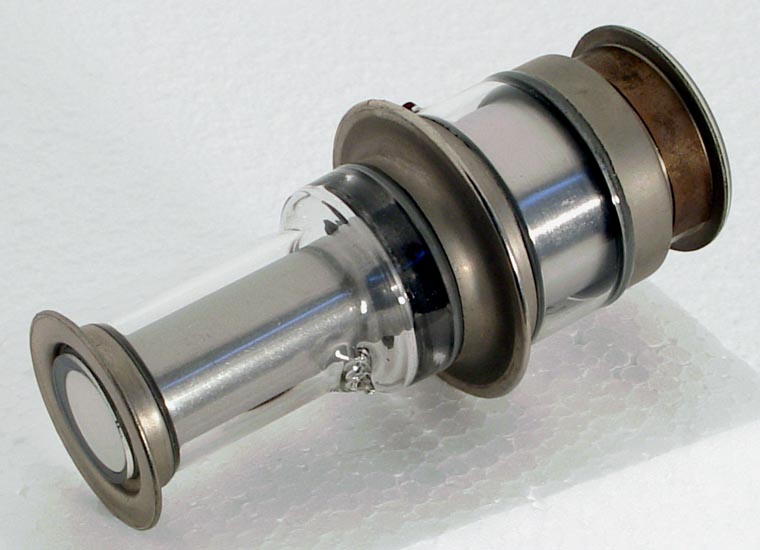

This image converter is a 6032. It was used to convert an infra red image projected onto the end window and to excite the output phosphor and produce a visible image. This would be the active element in a night vision device.
The end window envelope is 42 mm in diameter and the overall length is 113 mm.
Reference: Datasheet. Type 6032 was first introduced in 1958.



Absolute Maximum Operating Conditions
Camera
Va
20,000
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 20, 2013.
shape:end.window construction:disc.seal.(glass) type:camera.tube age:1950.1960 base: pin:
