The John Lawrence Collection
equivalents

new




home
Sensibly equivalent to:- 866A - ESU866 - 2V/400A

See also:
Ediswan Rectifier & Power Triode Advert

This exhibit was last updated on 05 December 2012
Become a friend or
with PayPal.

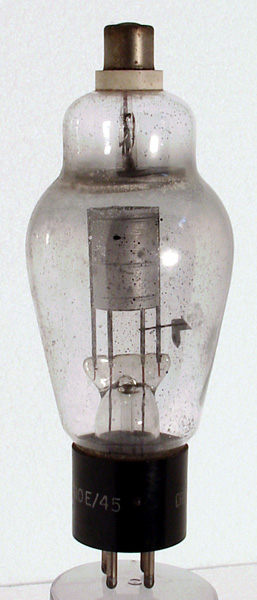

Strictly speaking the '10E/' and '110E/' designations added to the valve were WWII RAF Stores identities rather than valve types. No doubt boots, berets and ration packs all had identities in the same universal system. The valve shown above looks like an American Type 866 (MV) rectifier rated at 250 mA and 10 kV PIV.
Visual inspection shows spots of mercury on the inside of the envelope and identifies this as a half wave mercury vapour rectifier. The spacing of the electrodes and the ceramic top cap insulator all point to a voltage rating of 1000 Volts plus.
The classic envelope is 55 mm in diameter and, excluding the B4 base pins, is 150 mm tall.
References: Private Communication & datasheet.

Pin Connections
B4
1
2
3
4
tc
f
ic
ic
f
a

Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
2.5
5.0
2650
500

Thanks to Frank Philipse for supplying the above PDF datasheet
