7AN7

Sensibly equivalent to:
30L1 B319 PCC84
See also:
Valves and their Habits - Valves for Bands III, IV & V - PCC84/7AN7

Extras ▼

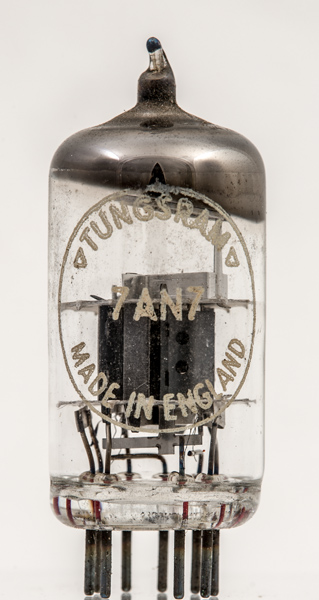

The 7AN7 is more commonly known as the PCC84 input cascode TV RF stage in VHF Band III television receivers.
In the early days of ITV on Band III in the UK, from Autumn 1955, the viewer would only have had a TV capable of receiving the single Band I BBC station. Adaptation required a new aerial and a converter from the 170 odd MHz of Band III back to the 50 MHZ of the Band I receiver. These original set-top boxes use a two valve line-up with the PCC84 as input and the PCF80 as oscillator and mixer.

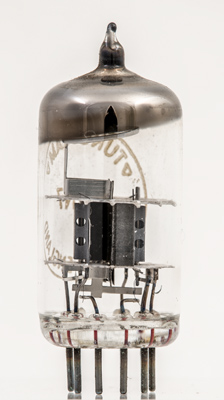

One triode anode with the inter-section screen behind.

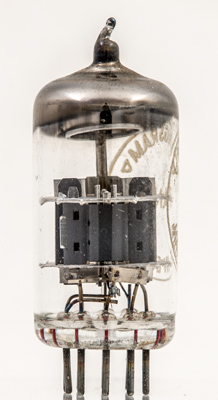

The thin glass tube envelope is 20 mm in diameter, and excluding the B9A base pins is 48 mm tall.
References: Data-sheet & 1040 Type 7AN7 was first introduced in 1954. See also 1954 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
k(2)
g1(2),s
A(2)
h
h
g1(1)
k(1-in)
k(1-out)
a(1)



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
7.0
0.3
90
-1.5
12
4,000
6
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 12, 2015.
