EBF80

Sensibly equivalent to:
6N8 WD709 ZD152
See also:
Valves and their Habits - EBF80 & UBF80 Advert

Extras ▼



The EBF80 is a variable μ amplifier pentode and a pair of signal diodes in the one envelope. Probably this was designed, as was the later EBF89, as final IF amplifier and AM detector. The other diode would provide AGC rectification.

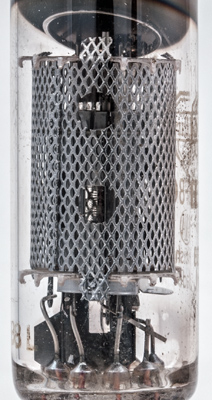

The hole in the screen allows a window through the anode to the grids inside. The outer grid is a wide pitch helix showing that this is a true pentode. The diode anodes are thin metal strips running vertically through the valve and can be seen inside the screen here.

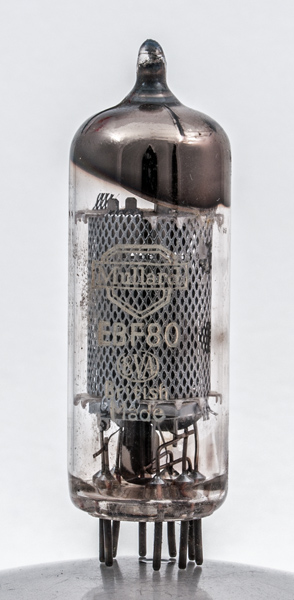

The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 59 mm tall.
References: Data-sheet, 3002 & 1040. Type EBF80 was first introduced in 1950. See also 1950 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
g2
g1
k,s
h
h
a
a(d1)
a(d2)
g3



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
85
-2
5.0
1.75
1.4M
2.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 02, 2020.
