G150/2D

Sensibly equivalent^¶ to:

CV413

See also:

Cold Cathode Valves Advert

Extras ▼

STC G8LSD Valve Collection Other G150/2D exhibits

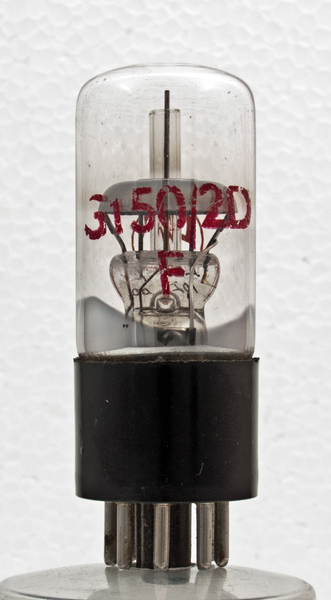

The G150/2D is a low power gas filled triode or thyratron.

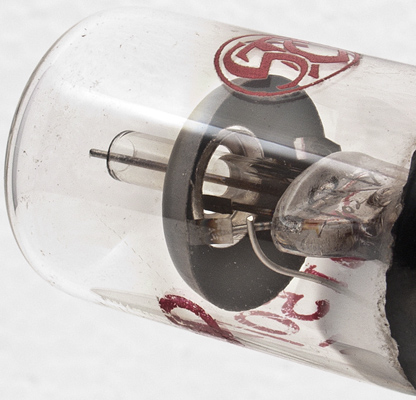

The STC logo indicates a professional rather than consumer valve. The anode is a glass shielded rod and the cathode is an inverted dish.

The trigger electrode can be seen just inside the cathode.

The wide glass tube envelope is 29 mm in diameter, and excluding the IO base pins is 70 mm tall.

References: Data-sheet & ¹⁰⁴⁰. Type G150/2D was first introduced in 1958. See also 1958 adverts.

Pin Connections

IO	1	2	3	4	5	6	7	8
	s	nc	a	nc	t	ic	ic	k

Absolute Maximum Operating Conditions^¶

The Thyratron	Va	mAa
	150	50

Thanks to Frank Philipse for supplying the above PDF datasheet.
