3Q4

Sensibly equivalent to:
CV818 DL95 N18

Extras ▼

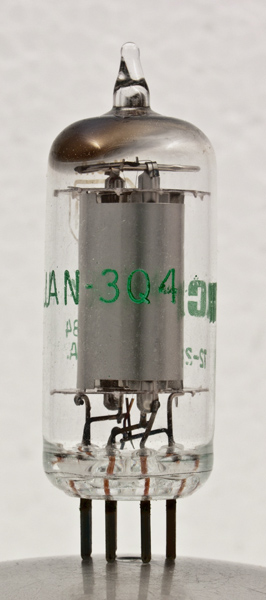

The 3Q4 miniature dry battery output pentode was designed for radio receiver use. The output of 0.27 Watt maximum would only drive a small efficient loudspeaker, not hi-fi but quite loud in a small room.

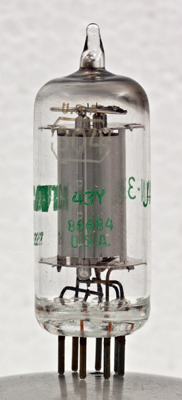

The preference for British made products in the post-war period, to save spending foreign currency on imports, is typified by the pejorative labeling of Foreign for the country of origin.

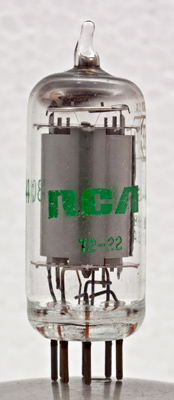

RCA in bright green.
The Type designation is etched into the glass as is the country of origin.

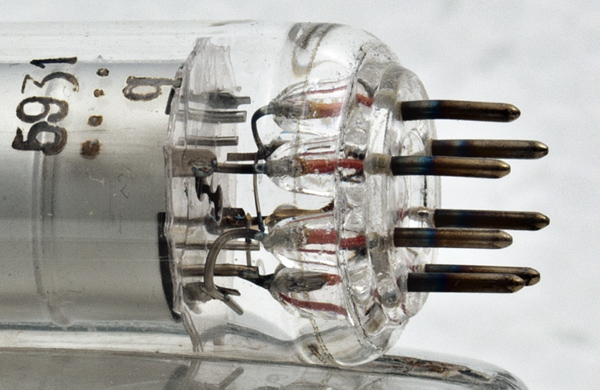

The base pins clearly showing the multi segment construction to offer a strong pin on the outside and a wire with an expansion co-efficient to match the hard glass base disc passing through the glass followed by more wire within.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 45 mm tall.
References: Data-sheet, 3002 & 1040. Type 3Q4 was first introduced in 1950. See also 1950 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
f-
a
g1
g2
fct,g3
a
f+



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
1.4
0.1
90
90
-4.5
9.5
2.1
100,000
2.15
0.27
7%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 09, 2013.
