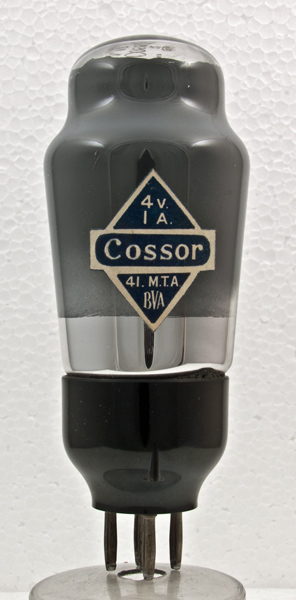

The 41MTA is a purpose designed high μ triode for use in television timebase circuits. The 41MTB was a triode for push-pull timebase circuits. Our other 41MTA has the older style of shouldered envelope and has clear glass.

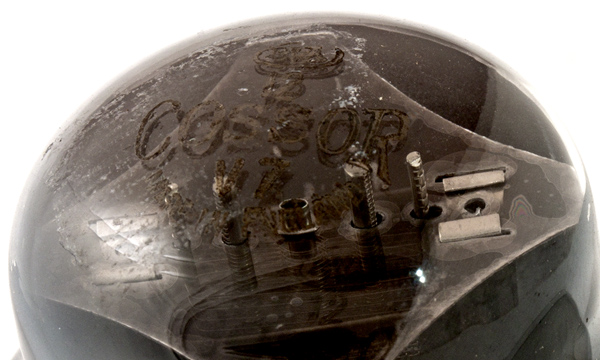

The identification on the dome gives the Cossor name, the BVA logo, Made in England and the code V7.

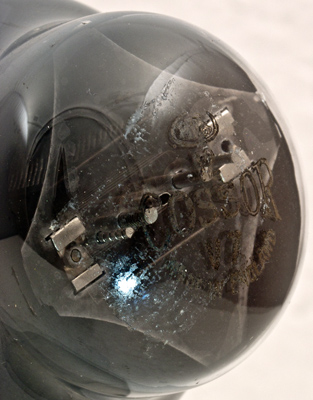

This image reveals a pair of grid windings. The inner grid is shaped to be close to the cathode. The outer grid passes flat in front of the anode. Close inspection shows that within an outer metal frame the working faces of the anode are made of mesh. It is not clear how the inner grid is connected.
The classic envelope is 50 mm in diameter, and excluding the B5 base pins is 113 mm tall.
Reference: 1043. Type 41MTA was first introduced in 1937. See also 1937 adverts.



Pin Connections
B5
1
2
3
4
5
a
g1
h
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
4.0
1.0
100
0
4.9
18,000
4.0
