ECF80

Sensibly equivalent to:
6BL8 6C16 CV5215
See also:
Valves and their Habits - Valves for Bands III, IV & V - ECF80 and ECF82 - RFT ECF80 Box

Extras ▼



The ECF80 was designed for TV mixer operation up to 220 MHz. As 1950s television receivers tended to use the PCFnn 300 mA valves, the production of this valve with a 6.3 Volt heater suggests that it was aimed at the professional VHF communications market.

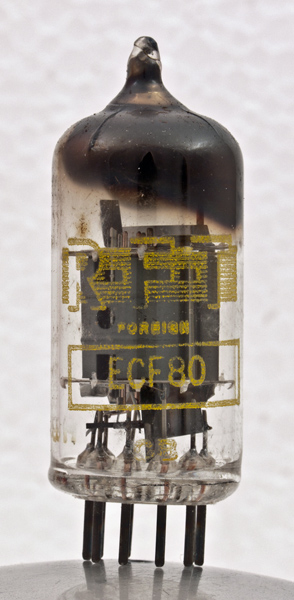

RFT was the state owned East German valve maker.
The triode is the oscillator and has to produce 5 V pk-pk signal. The screened pentode is the mixer. The valve has two cathodes so two independent valves are sited in the one envelope.

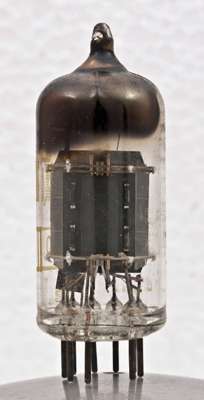

The small triode section is on the left.
The triode anode with pentode anode behind. This side of the pentode anode is left bright - overheating the triode not being a good idea.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 49 mm tall.
References: Data-sheet & 1040 Type ECF80 was first introduced in 1954. See also 1954 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(t)
g1
g2
h
h
a
k,s,g3
k(t)
g1(t)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.43
250
180
-5.8
5.7
1.4
1.5M
5.5



Absolute Maximum Operating Conditions
Triode
Va
Vg
mAa
ra
gm
100
-2
14
4K
5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 08, 2020.
