CV380

Sensibly equivalent to:
CV1136 EF54
See also:
The Famous EF50 of WWII - Television RF Valve Development - Mullard EF54 Box - Mullard EF54 Advert

Extras ▼



The CV380 is the commercial EF54 produced to a UK government procurement specification that applied a small modification to the design.
The valve is a VHF high-slope pentode and has a sharp cut-off. The cathode is brought out to several pins to provide a low inductance path, part way to a ring connection as found in co-axial valves. A feature of the CV380 is aligned grids that provide conditions to reduce partition noise.

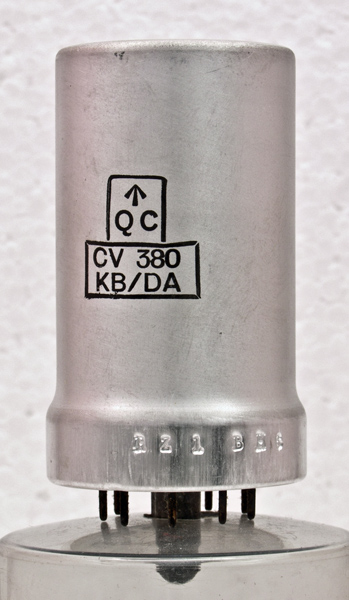

The all glass construction is covered with an aluminium screening can in the same fashion as the EF50 et al with a metal base cover that houses the evacuation tube within the locating spigot.

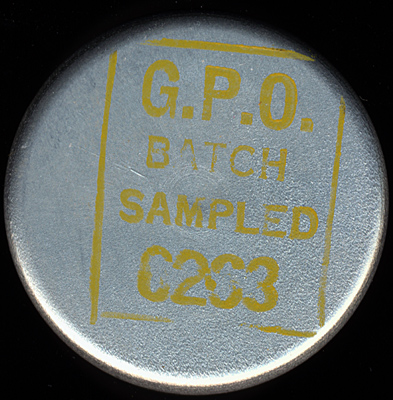

The top of the envelope. The GPO was the General Post Office of the UK. A government body and both regulator and controller of both the postal service and the telephone system.
The wide glass tube envelope is 33 mm in diameter and, excluding the B9G base pins, is 59 mm tall.
References: Data-sheet & 1043. Type CV380 was first introduced in 1947. See also 1947 adverts.



Pin Connections
B9G
1
2
3
4
5
6
7
8
9
h
a
g2
k
k
g1
k
k
h



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
250
-1.7
10
1.45
0.5m
7.7
Thanks to Frank Philipse for supplying the above PDF datasheet.
