EL95

Sensibly equivalent to:
6DL5
See also:
Pinnacle EL95 Box

Extras ▼

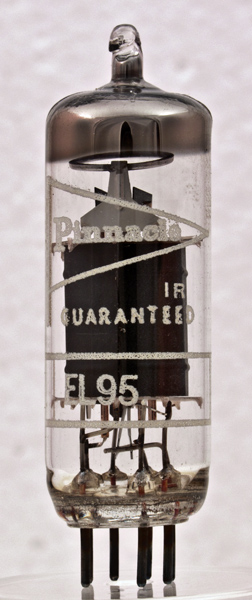

The EL95 is an output pentode designed for use in car radio receivers. Pinnacle describe their products as the pick of the world's valves, gone are the days of using the pejorative term foreign for valve imports.

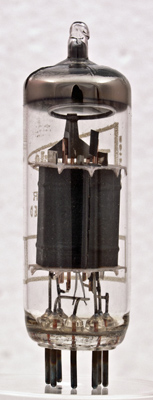

The grid supports are copper and the screen grid has heat radiating fins attached.

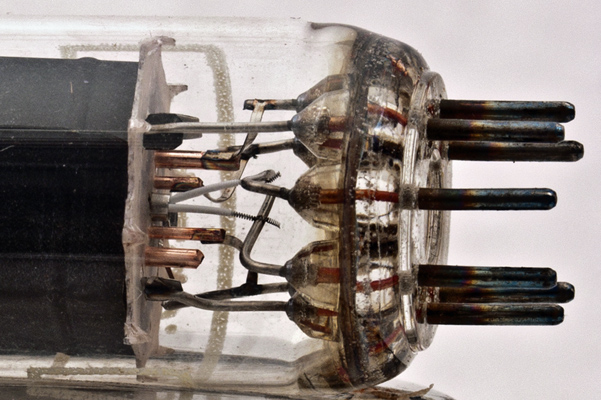

The base showing that each of the control grid supports connects to a base pin. The insulated heater is a single hair-pin of coiled wire.

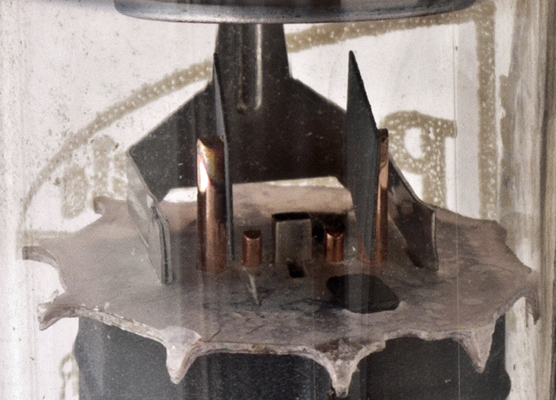

The top mica components. The heater does not emerge from the rectangular cathode.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 53 mm tall.
References: Data-sheet, 3002 & 1040. Type EL95 was first introduced in 1955. See also 1955 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k,g3
h
h
a
g2
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pdiss
Pout
6.3
0.2
250
250
-9
24
4.5
8,000
5.0
6.0W
2.3W
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 30, 2013.
