Sensibly equivalent to:- CV3995

See also:
Cossor 6CB6 Box

This exhibit was last updated on 03 December 2011
Become a friend or
with PayPal.

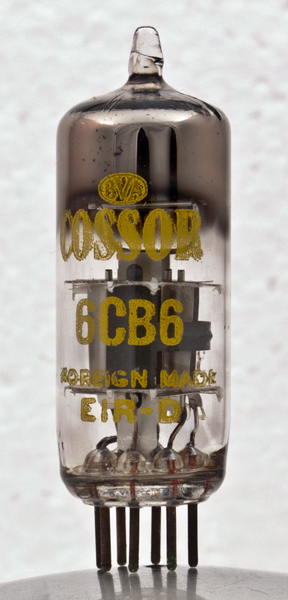

The 6CB6 is a sharp cut-off amplifier valve. The 6CB6 was designed for use as IF amplifiers at frequencies above 20 MHz.

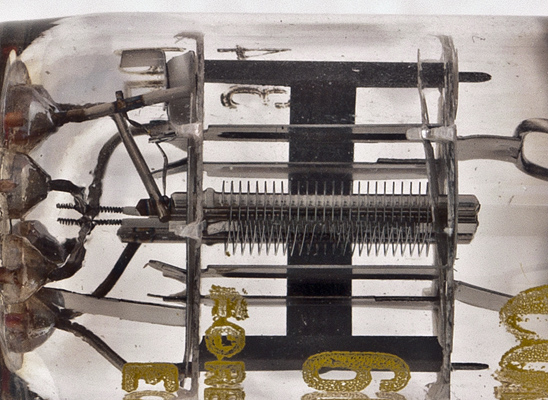

The internal construction shows the two inner grids close to the flat cathode and with their wires straight and parallel to the anode. The anode is some distance away and is formed from two plates, one each side of the cathode. The beam plates are small formed sheets with rectangular holes in them.

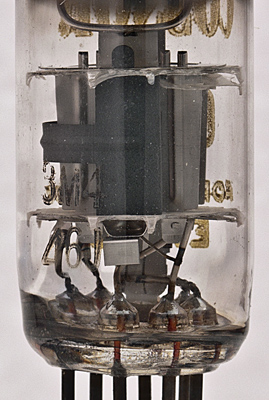

Another view of the main construction
The anode is the dark metal and the beam plates are the brighter sheet behind.
The envelope is 17 mm in diameter and, excluding the B7G base pins, is 47 mm tall.
References: Datasheets from RCA and Tung-Sol

Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
g2
g3

Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
mAa
mAs
ra
gm
6.3
0.3
200
150
9.5
2.8
0.6M
6.2

Thanks to Frank Philipse for supplying the above PDF datasheet
