ML7815

Sensibly equivalent to:
3CPN10A5 7815

Extras ▼



The ML-7815 is a high μ rugged UHF planar triode for use up to 3 GHz. The anode connection is designed for conduction cooling, and the intended application is in airborne equipment.

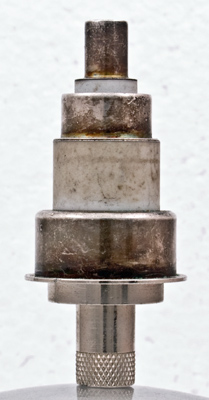

The valve is seen standing on the anode connector with the co-axial heater connection at the top. The envelope is ceramic and the electrode connections are silver plated. In use the valve would sit in a resonant co-axial cavity.

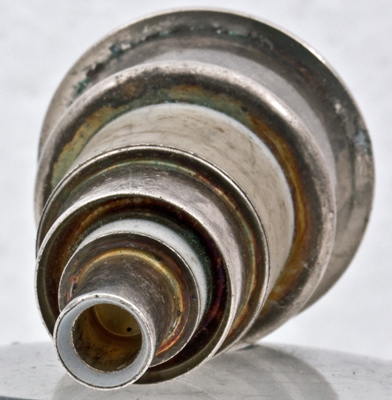

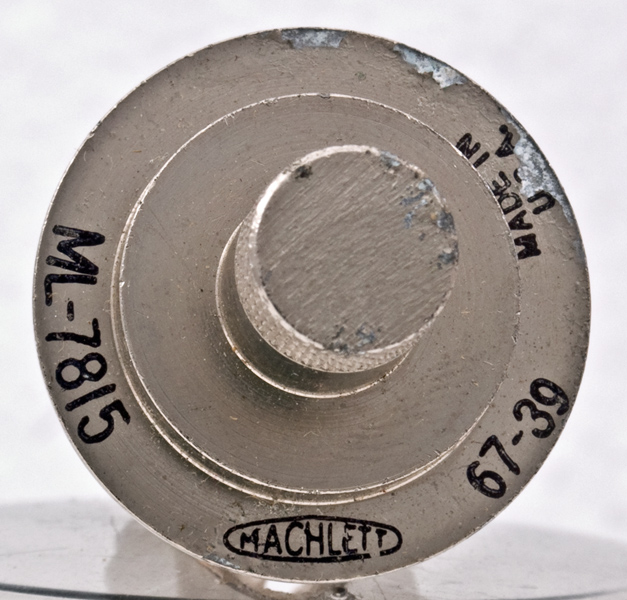

This shows the valve connections. Centre is heater with the other heater surrounding it. Next is the grid ring and finally the anode ring.
The planar envelope is 30 mm in diameter, and including connections is 67 mm tall.
Reference: Data-sheet. Type ML7815 was first introduced in 1967. See also 1967 adverts.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
6.0
1.0
2500
-150
125
Thanks to Frank Philipse for supplying the above PDF datasheet.
