DAC32

Sensibly equivalent to:
1H5 1H5GT CV1820 HD14 VT-223

Extras ▼

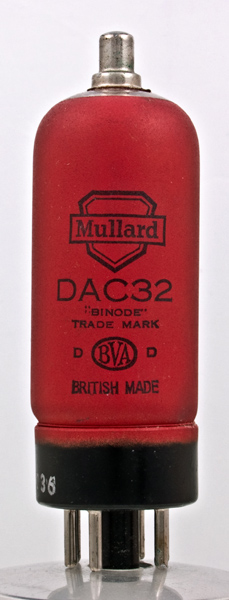

This DAC32 exhibit is covered in the Mullard red external metallisation. The DAC32 is a dry battery diode triode that was designed, after WWII, for AM broadcast radio reception. Mullard describe this valve as a medium gain triode for use as an AF voltage amplifier combined with a single diode for signal or AVC (AGC) rectification.
The filament power is very low and consequently the valve is rated for a very low current.
See also DAC32 for a clear envelope version.
The wide glass tube envelope is 30 mm in diameter and excluding the IO base pins it is 86 mm tall.
References: Data-sheet, 1040 & 1043.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
f+
a
nc
a(d)
nc
f-
nc
g1



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
mAa
ra
gm
1.4
0.05
90
0.15
240k
0.275
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 04, 2022.
