6BN4A



Extras ▼



The 6BN4A is described as a medium μ triode. It was probably used in television reception. The twin connections to both the cathode and the control grid suggest an RF role.

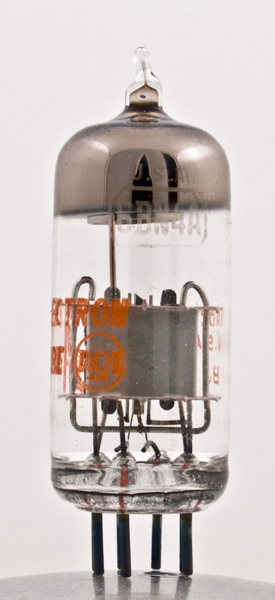

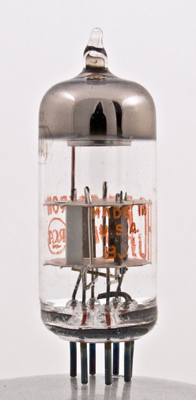

The triode is on the right with a plane sheet of metal on the left. The latter seems to have no function other than to act as a spacer for the left hand side of the micas. The screening plate is connected to the cathode.
The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 46 mm tall.
References: Data-sheet & 3002. Type 6BN4A was first introduced in 1960. See also 1960 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
k
g1
h
h
a
k
g1



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
6.3
0.2
150
-6
9.0
-
7.7
43
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 08, 2013.
