YL1020Sensibly equivalent¶ to:See also:
|
|
|
|
The YL1020 from Mullard is the quick heating form of the QQV-13-20A double beam transmitting tetrode.

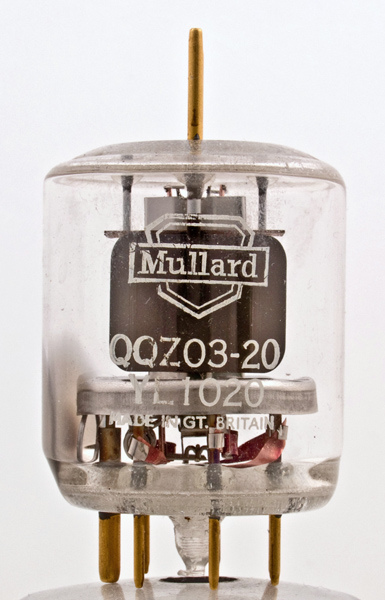

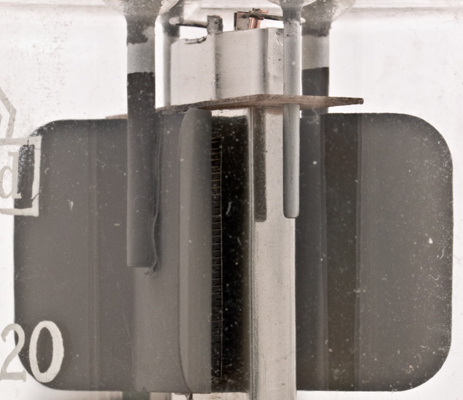

Following the European pattern, a central flat cathode is surrounded by a split control grid (one half per valve), a common screen grid is wound next. The two beam forming plates can be seen either side of the central assembly. The anodes are finned for good heat dissipation and clearly separated from the central structures, the anodes are brought out to pin like top caps.The heater runs at 1.6 Volts and 4.25 Amps. The surge at power-up is sufficient to raise the cathode to an operating temperature such that 70% of rated output is available in 0.5 Seconds.In addition to use as transmitter power amplifiers the upper frequency of 600 MHz made them popular for frequency multiplication.The wide glass tube envelope is 44 mm in diameter and, excluding the B7A base pins and top pins is 53 mm tall.Reference: Data-sheet. Type YL1020 was first introduced in 1964. See also 1964 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | tc | tc |  f(2) | g1(2) | g2 | f(1),bp,s | ic | g1(1) | f(2) | a(2) | a(1) |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | mAg | Pdriv | Pout | Pdiss | freq | f.max |
| 1.6 | 4.25 | 600 | 250 | -60 | 100 | 8 | 1.4 | 1.5W | 48 | 20W | 200 | 600 |
|
