The PCH200 is a television triode heptode. The triode was designed as a pulse amplifier and the heptode section was designed for service as a noise gated sync. separator in colour television receivers. The PCH200 replaces the ECH84.

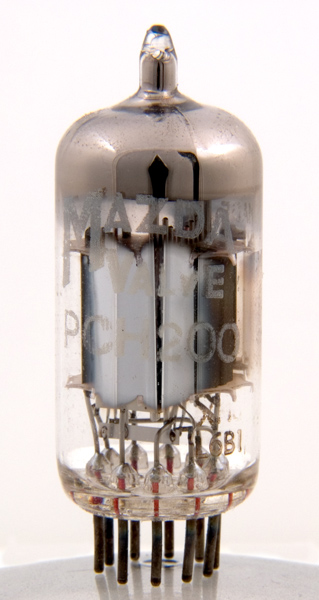

Seen side on, the anode closest to the camera is the small triode. The thin grid wirescan be seen together with the copper support rods. Behind the triode can be seen the grid supports of the heptode section.
The thin glass tube envelope is 20 mm in diameter, and excluding the B10B base pins is 48 mm tall.
References: Datasheet & 3002. Type PCH200 was first introduced in 1964.

Pin Connections
B10B
1
2
3
4
5
6
7
8
9
10
k,g5,s
g3
g1
g2,g4
h
h
a
g1(t)
k(t)
a(t)

Absolute Maximum Operating Conditions
Heptode
Vh
Ah
Va
Vs
Vg
mAa
mAs
8.5
0.3
14.0
14
-1.8
0.02
-
Triode
Va
Vg
mAa
ra
gm
μ
200
-
9.0
-
8.8
50

Thanks to Frank Philipse for supplying the above PDF datasheet
