5AR4

Sensibly equivalent to:
CV1377 GZ34

Extras ▼

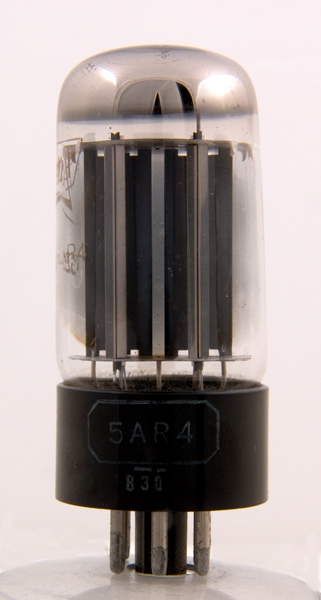

The 5AR4 is a compact high current full wave rectifier for use in high current small equipment. The compact size is in part achieved by the use of a pressed glass foot rather than a pinch. Essentially an all glass valve fitted on an IO base cap.
The envelope contains two flanged anodes that are carbonised for greater radiation efficiency.
See also GZ34.
The wide glass tube envelope is 31 mm in diameter and, excluding the IO base pins, is 69 mm tall.
References: Datasheet, 3002 & 1040. Type 5AR4 was first introduced in 1952.



Pin Connections
IO
1
2
3
4
5
6
7
8
M
h
nc
a(2)
nc
a(1)
nc
h,k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
5.0
1.9
550
160
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 07, 2013.
shape:wide.glass.tube construction:glass.foot type:rectifier.fw age:1950.1960 base:io heater:5.0v pins:8 pin:1.m pin:2.h pin:3.nc pin:4.a(2) pin:5.nc pin:6.a(1) pin:7.nc pin:8.h.k
