E415

Sensibly equivalent to:
A4100 H4100 KL1/ACR REN804

Extras ▼

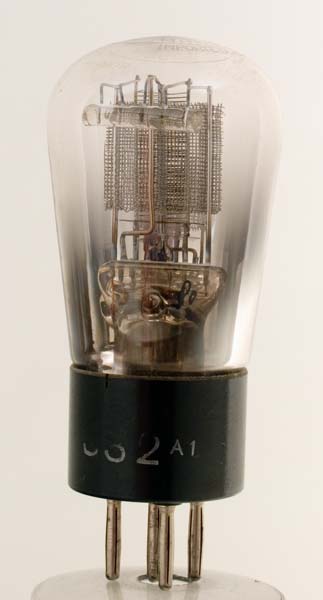

This exhibit from Philips has a woven mesh anode and an indirectly heated tubular cathode with an oxide coating. The almost square section grid is 2.8 mm across the broad face and the anode is about 6 mm across the face. The construction features a glass tube support mounted horizontally at the top of the anode to give extra rigidity to the electrodes. This stability would help reduce microphony.

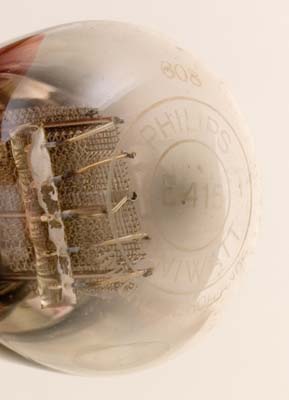

The top of the envelope has etched identification lettering. In addition to the makers name and the trade name 'Miniwatt' the country of origin is marked as Made in Holland.
The balloon envelope is 46 mm in diameter, and excluding the B5 base pins is 86 mm tall.
References: Data-sheet & 3002. Type E415 was first introduced in 1927. See also 1927 adverts.



Pin Connections
B5
1
2
3
4
5
a
g1
h
h
k



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
4.0
1.0
200
-8.0
6.0
0.1M
1.4
45
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 07, 2013.
