6CL6

Sensibly equivalent to:
CV5041

Extras ▼

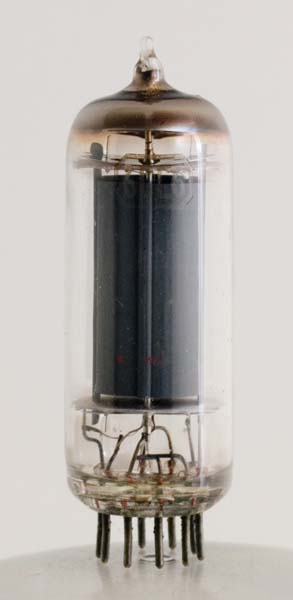

The 6CL6 pentode valve is a video power device capable of producing 2.8 Watts of broadband video in single ended class A.
Seen from the side, the same uniform grey anode is presented.
The valve will also perform well as a single ended high gain audio amplifier, again with 2.8 Watts output and a distortion of 8 %.

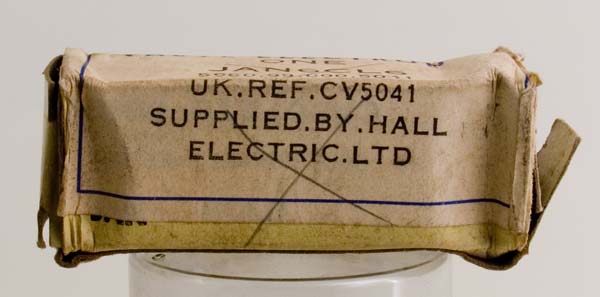

The box also includes the UK Government procurement code of CV5041. This type designation is not printed onto the valve itself.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 57 mm tall.
References: Data-sheet & 1040



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
k
g1
g2
h
h
a
g3,s
g2
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.65
250
150
-3
30
7
150k
11
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated September 21, 2011.
