EB91

Sensibly equivalent to:
6AL5 6D2 CV140 D152 D77 DD6 EAA91 M8212

Extras ▼

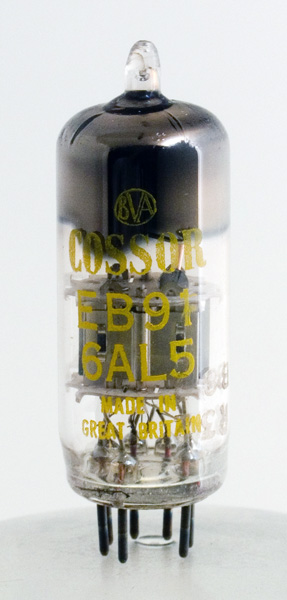

The EB91 is a double signal diode. These diodes were designed for vision and sound detection. Additionally they are recommended for limiting and DC restoration. Each section is internally screened.

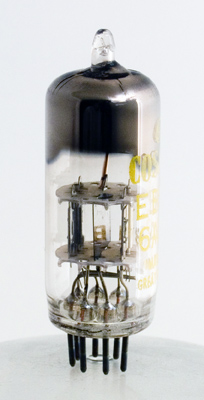

The two valves are separate almost flat structures separated by a bright plate screen. This clearly shows the signal usage, where it is important to keep RF isolation. The wire at the top of the picture is the getter support.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 47 mm tall.
References: Data-sheet & 1040. Type EB91 was first introduced in 1949. See also 1949 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
k(1)
a(2)
h
h
k(2)
s
a(1)



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.3
150
9
Thanks to Frank Philipse for supplying the above PDF datasheet.
