CV1054

Sensibly equivalent to:
ARDD5 EB34 OM3 VR54

Extras ▼

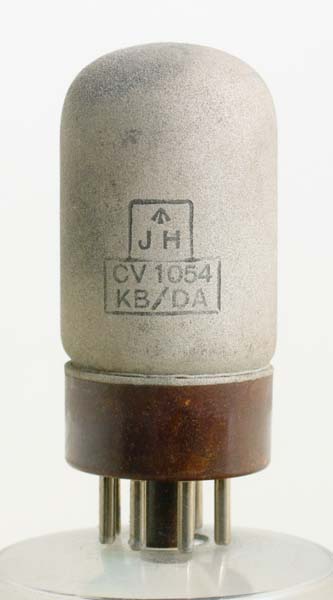

The CV1054 is a pair of signal diodes in a single envelope. Each section is internally screened.
The CV1054 when in commercial guise is the EB34.
The wide glass envelope is 30 mm in diameter and, excluding the IO base pins, is 59 mm tall.
References: Data-sheet & 1040.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a(2)
k(2)
a(1)
nc
h
k(1)



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.2
140
0.8
Thanks to Frank Philipse for supplying the above PDF datasheet.
