CV2523

Sensibly equivalent to:
6AS7G AI834

Extras ▼

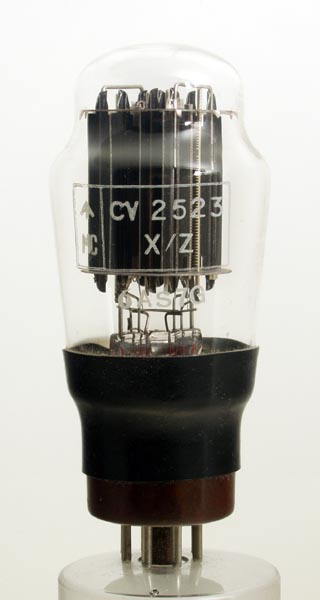

The CV2523 is a double triode with special properties. The AC anode resistance is very low at 280 Ohms and the mutual conductance is considerable at 7.5 mA/V. The suggested cathode bias resistor is given as 250 Ohms.
This valve could be used in low voltage power supplies as a series pass device or it could be used for a direct drive audio amplifier. It would be useful to know its exact design use. The literature gives a single ended audio amplifier as its use.
The classic envelope is 46 mm in diameter, and excluding the IO base pins, is 105 mm tall.
References: Data-sheet & 4040. Type CV2523 was first introduced in 1946. See also 1946 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
g1(2)
a(2)
k(2)
g1(1)
a(1)
k(1)
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
2.5
135
-31.5
125
280
7.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
