VR67

Sensibly equivalent to:
6J5G CV1067 L63 POVT154

Extras ▼

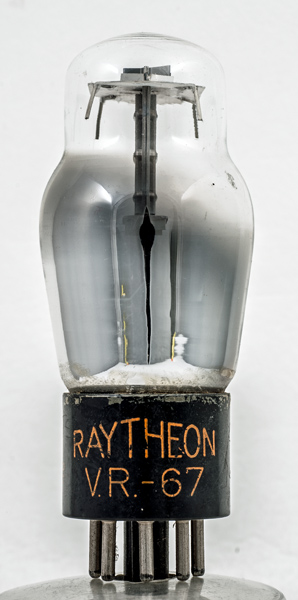

The VR67 is a single medium μ triode is housed within a glass envelope. The valve is a 6J5G marked with the pre CV register RAF valve code of VR67 for Valve Receiving number 67.
This is a classic triode design with the popular audio double triode the 6SN7 being a pair of 6J5s in a single envelope.

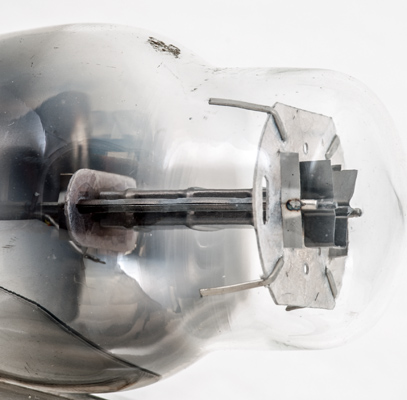

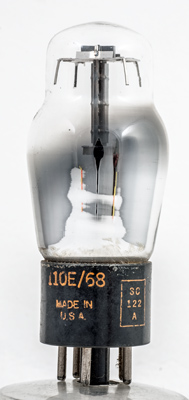

The electrode assembly is hidden by the gettering on one side but the pinch and supports can be seen from this side. The triode section is quite a small portion of the envelope length. The base cap also is marked with the old UK services stores code of 110E/68 and Made in USA.

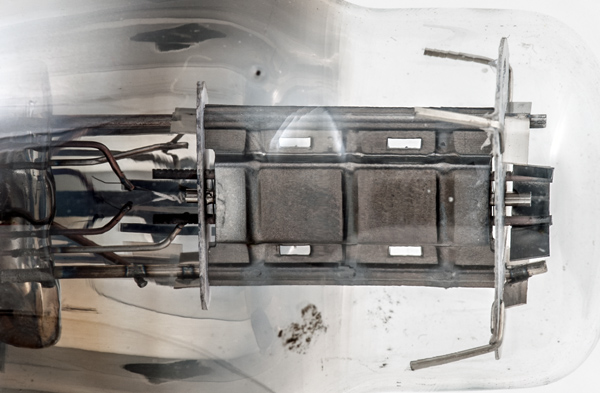

A closer look at the triode assembly.
The classic envelope is 39 mm in maximum diameter and excluding the IO base pins the valve is 87 mm long.
References: Datasheet, 1040 & 1043.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
nc
g1
nc
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
-8
9
7.7K
2.6
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December08, 2017.
shape:classic construction:pinch type:triode age:1930.1940 base:io heater:6.3v pins:8 pin:1.m pin:2.h pin:3.a pin:4.nc pin:5.g1 pin:6.nc pin:7.h pin:8.k
