5R4WGY

Sensibly equivalent to:
CV2835

Extras ▼



The 5R4WGY is a high voltage power rectifier and was designed for transmitter use. It has a rating of 180 Watts. The maximum reservoir capacitor is specified at 4 µF and the rectifier needs a series resistance of 250 Ohms to limit peak current.

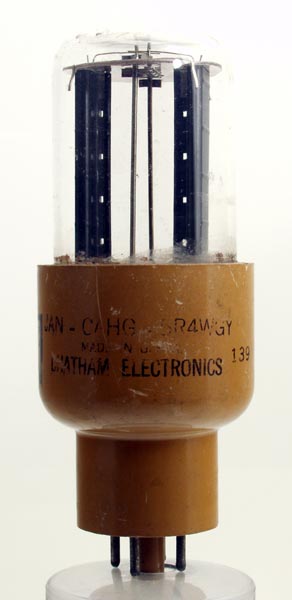

This exhibit is a more modern version of the valve and would be moisture stable the 5R4GY is of an older design but has the same rating.
The plastic base has a maximum diameter of 50 mm.
The wide glass tube envelope is 42 mm in diameter, and excluding the IO base pins is 116 mm tall.
Reference: Datasheet. Type 5R4WGY was first introduced in 1958.



Pin Connections
IO
1
2
3
4
5
6
7
8
-
f
-
a(2)
-
a(1)
-
f



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
5.0
2.0
750
250
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 31, 2013.
shape:wide.glass.tube construction:pinch type:rectifier.fw age:1950.1960 base:io heater:5.0v pins:8 pin:1.- pin:2.f pin:3.- pin:4.a(2) pin:5.- pin:6.a(1) pin:7.- pin:8.f
