CV1331

Sensibly equivalent to:
ARP12 CV1083 CV3792 VP22 VP23
See also:
Observations an the ARP12

Extras ▼

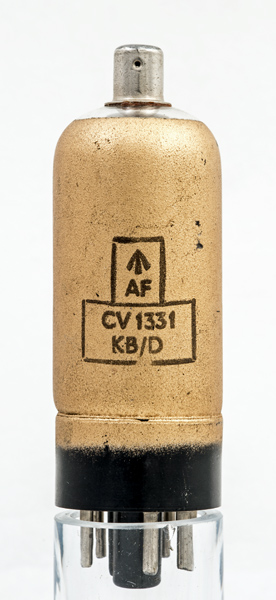

The CV1331 is a battery operated variable μ screened pentode. It was used as an RF or IF amplifier in portable radio receivers/transmitters. The direct commercial equivalent is the Mazda VP23.

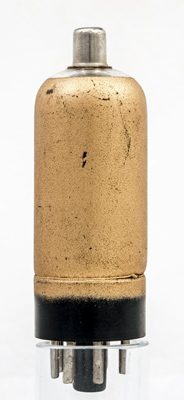

The reverse is plain screening paint.

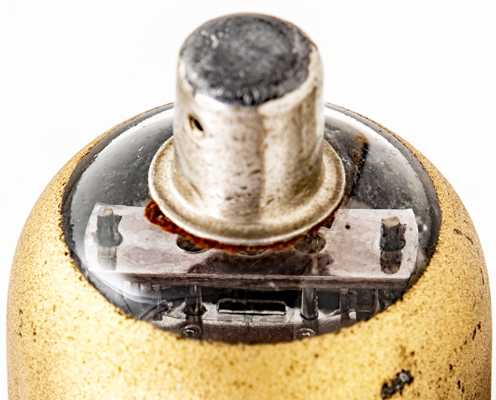

The filament can just be seen. It is a single inverted V and held in the hook of a helical tensioning spring.
The wide glass tube envelope is 30 mm in diameter and, excluding the MO base pins, is 82 mm tall.
References: Data-sheet & 1043. Type CV1331 was first introduced in 1938. See also 1938 adverts.



Pin Connections
MO
1
2
3
4
5
6
7
8
tc
f
nc
a
g2
g3
m
nc
f
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
2.0
0.05
120
60
-1.5
1.45
0.5
1.45M
1.08
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 03, 2022.
